5. DIGITAL SINE



5.1 Description





graphics29

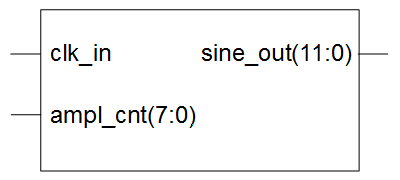

Drawing 5.1: Digital Sine block diagram











5.2 Creating Module

To create Digital Sine module, use steps for creating modules, Sub-chapter 2.3.1 Creating a Module Using an Text Editor.



Digital Sine VHDL model:



library ieee;

    use ieee.std_logic_1164.all;

    use ieee.std_logic_arith.all;

    use ieee.std_logic_unsigned.all;



    use work.modulator_pkg.all;



entity sine is

    generic(

        depth_g : integer range 1 to 99 := 8;

        width_g : integer range 1 to 99 := 12

        );



    port(

        ampl_cnt : in std_logic_vector(depth_g-1 downto 0); -- address value for the sine waveform ROM

        clk_in      : in  std_logic; -- input clock signal

        sine_out  : out std_logic_vector(width_g-1 downto 0) -- current amplitude value of the sine signal

        );

end;



architecture rtl of sine is



    constant sin_ampl_c : vector_t_arr := init_sin_f(depth_g, width_g); -- returns sine amplitude value



    signal ampl_cnt_s : integer range 0 to 255 := 0; -- amplitude counter

    signal sine_s         : std_logic_vector(width_g-1 downto 0) := (others=>'0'); -- sine



begin



    sine_p : process -- fetch amplitude values and frequency - generates sine

    begin



        wait until rising_edge(clk_in);

        ampl_cnt_s <= conv_integer(ampl_cnt); -- convert amplitude counter into integer

        sine_s <= conv_std_logic_vector(sin_ampl_c(ampl_cnt_s), width_g);      -- fetch amplitude



    end process;



    sine_out <= sine_s;



end;



Note: All the information about creating the Digital Sine Module, you can also find in the Lab 7: “Creating Digital Sine Module”.
